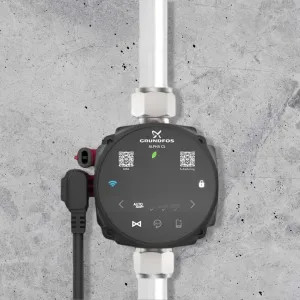

Grundfos ALPHA CS Hot Water Recirculation Pump Kit, 115V, 9H, Timer, Cord, Stainless Steel, 3/4" MIP x FIP Union - 15-55 SU7P/TLC (92603114)

SKU: 943633
$ 451.63 / ea
Save 17% · Retail: $546.00

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"! In Stock and Ready to Ship


Ships From Price Qty
Order From Manufacturer
Available to Ship in 3-4 weeks
$451.63/ea

About the Grundfos ALPHA CS Hot Water Recirculation Pump Kit, 115V, 9H, Timer, Cord, Stainless Steel, 3/4" MIP x FIP Union - 15-55 SU7P/TLC (92603114)

Frustrated by lukewarm water at the tap?


The Grundfos Alpha CS 15-55 SU7P/TLC recirculating pump kit can transform your mornings. This innovative circulator pump comes with a comfort valve and is designed without a dedicated return line since it utilizes the existing cold-water supply line as a return line in your home — no separate new return line is required! No electrical power is required under the sink. Experience the comfort of instant hot water at your fingertips.


But the benefits go far beyond convenience. This Alpha CS 15-55 SU7P/TLC pump kit comes with a bypass valve, hose kit and a comfort valve. Also, with a flow rate of 13.6 GPM and a head of 18 feet, it is made to handle demanding tasks with ease. Built to last, this pump features a durable stainless steel housing and a union connection (3/4" MIP x FIP) that allows for quick assembly and disassembly.


This energy-efficient pump is packed with smart features for easy use and continued savings. Its built-in timer with battery backup and automatic flow adjustment (FLOWSENSE) optimizes energy use. Not just that, this hot water pump's built-in temperature sensor simplifies installation, eliminating the need for separate parts. Additionally, AUTOADAPT technology continuously monitors and adjusts to changes in the system, ensuring consistent performance even under fluctuating hot water demands. Moreover, features like dry-run protection further safeguard the pump, offering peace of mind for years to come.


For ultimate convenience, the pump boasts Bluetooth connectivity. Simply download the Grundfos GO app and connect the pump to your smartphone. This app offers a user-friendly interface to monitor performance (flow, head, watts) in real-time and provides historical data. You can also set a constant, minimum, or maximum flow rate, schedule pump operation, and receive software updates. And, this notable app features an event log with warnings and alarms, and even a replacement compatibility check to make certain you have the right parts for maintenance. To top it off, you can download the Grundfos Home app for scheduling and troubleshooting report of your pump.


Invest in comfort and efficiency with the Alpha CS 15-55 SU7P/TLC hot water pump from Grundfos. This innovative pump offers the perfect blend of comfort, efficiency, and convenience, making it a valuable addition to any home. Upgrade your home comfort and save money on your plumbing needs here at PlumbersStock!

Manufacturer: Grundfos
Product: Pump Kit
Pump Type: Circulator Pump
Color: Red/Black
Housing Material: Stainless Steel
Connection Size: 3/4"
Connection Type: MIP x FIP
Temperature Range: 36° to 203°F
Pressure Rating: 175 PSI
Motor Type: Single Phase
Modus Operandi: AC Electrical
Electrical Voltage: 115 Volt
Wattage: 38 Watts
Flow Rate: 13.6 GPM
Length: 3-1/2"
Width: 4.5"
Height: 5.2"
Sound Level: 25 dB(A)
Installation Location: Indoor
Other Info: cULus Listed
  FCC
Pump Features: FLOWSENSE
  AUTOADAPT
  Dry-Run Protection
  Bluetooth Compatible
  WiFi Compatible
Mpn # 92603114
Shipping Dimensions 8.0" x 8.0" x 8.0"
Weight 5.25 lbs.
  • Schedule Hot Water with Backup! Utilize the built-in Bluetooth app to schedule pump operation, ensuring instant hot water whenever you need it most - whether it's for a refreshing morning shower or a relaxing evening bath. And its innovative battery backup keeps the schedule running smoothly, even if the power goes out, guaranteeing a consistent and reliable hot water experience.
  • Know Your Hot Water:The innovative integrated temperature sensor acts like a personal hot water advisor. It provides real-time data on the exact temperature of your water, allowing you to optimize settings and ensure peak performance.
  • Data at Your Fingertips! It boasts a user-friendly touch interface that puts you in complete control of your hot water system.
  • Effortless Installation & Optimal Performance: You can eliminate the time-consuming hassle of finding the perfect pump setting, thanks to its FLOWSENSE feature. This innovative technology automatically adjusts flow, ensuring enough water flow.
  • Always Hot Water, No Matter the Demand. Experience the ultimate in hot water convenience with the AUTOADAPT technology. This innovative technology continuously monitors and adjusts pump operation to meet your changing hot water needs. No more waiting for lukewarm water during peak usage times, like when multiple faucets are running in your home.
  • Built-in Protection for Long-Lasting Performance! Enjoy worry-free hot water operation with its dry-run protection. This innovative safety feature safeguards the pump from damage caused by running dry. It automatically detects low water flow conditions and shuts off the pump before any harm can occur. This prevents overheating, seizing, and other potential issues, ensuring long-lasting performance and reliable hot water for years to come.
  • Simplifying Maintenance Without Compromising System Integrity: Its union connection type allows for easier installation and removal of the pump for maintenance purposes. The union creates a leak-proof seal by simply tightening the nuts
  • Ditch the Physical Timer: Download the Grundfos GO app and take control of your pump using your smartphone. Set your hot water availability to perfectly match your needs.
  • Delivers Reliable Power: It has an impeller made of composite material, a superior choice compared to traditional materials. This innovative design offers increased resistance to corrosion and wear and tear, ensuring reliable and efficient pump operation for years to come.
  • Hassle-Free Kit: It comes with a bypass valve, hose kit and a comfort valve and a cord!
