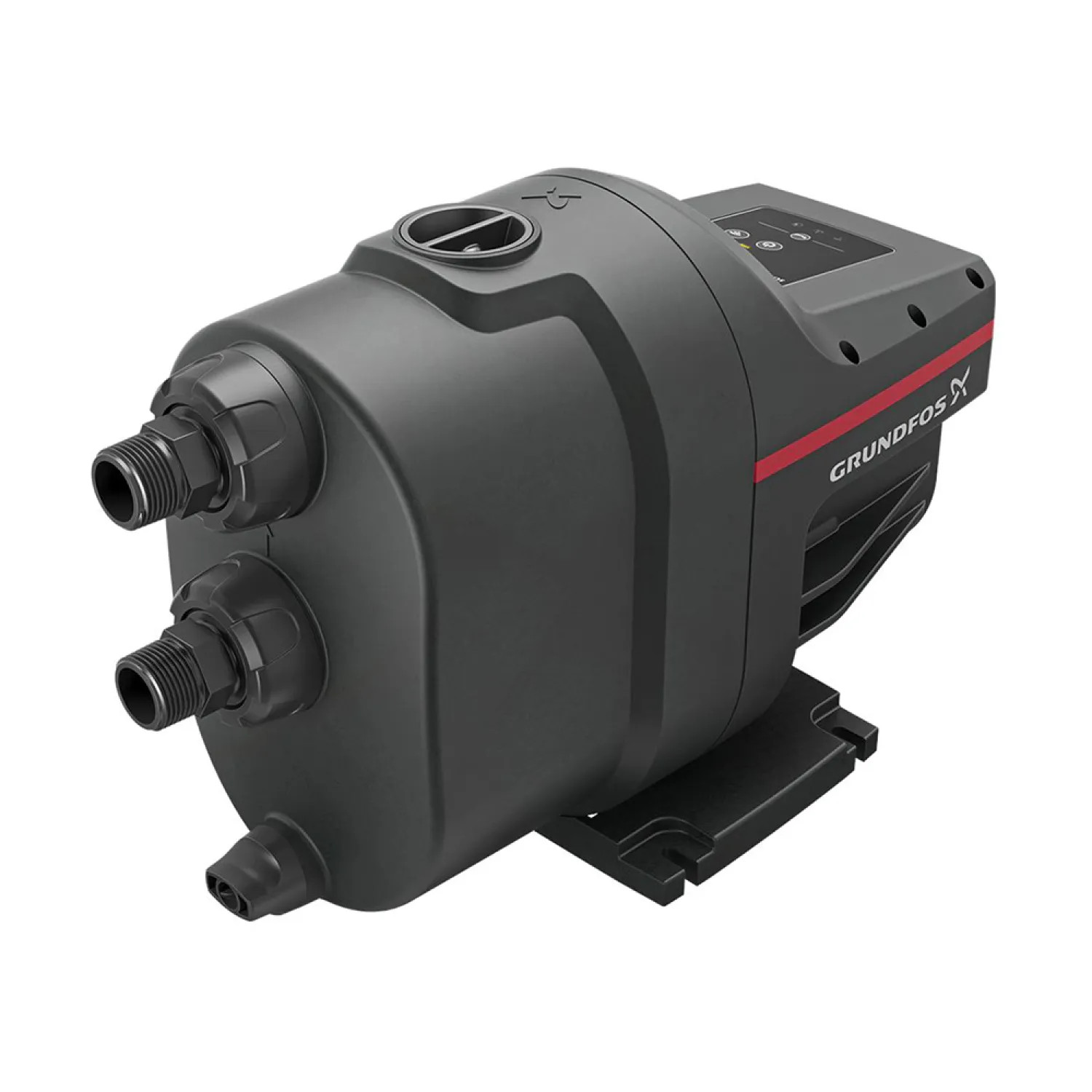

Grundfos 99631754 Grundfos SCALA1 5-55 Pressure Booster Pump, 1.15 HP, 23.2 GPM Rated Flow, 115V, Max Head 181', App-Enabled - 99631754
View 2 of Grundfos 99631754 Grundfos SCALA1 5-55 Pressure Booster Pump, 1.15 HP, 23.2 GPM Rated Flow, 115V, Max Head 181', App-Enabled - 99631754
View 3 of Grundfos 99631754 Grundfos SCALA1 5-55 Pressure Booster Pump, 1.15 HP, 23.2 GPM Rated Flow, 115V, Max Head 181', App-Enabled - 99631754
View 4 of Grundfos 99631754 Grundfos SCALA1 5-55 Pressure Booster Pump, 1.15 HP, 23.2 GPM Rated Flow, 115V, Max Head 181', App-Enabled - 99631754
View 5 of Grundfos 99631754 Grundfos SCALA1 5-55 Pressure Booster Pump, 1.15 HP, 23.2 GPM Rated Flow, 115V, Max Head 181', App-Enabled - 99631754
View 6 of Grundfos 99631754 Grundfos SCALA1 5-55 Pressure Booster Pump, 1.15 HP, 23.2 GPM Rated Flow, 115V, Max Head 181', App-Enabled - 99631754
View 7 of Grundfos 99631754 Grundfos SCALA1 5-55 Pressure Booster Pump, 1.15 HP, 23.2 GPM Rated Flow, 115V, Max Head 181', App-Enabled - 99631754

Product Options

Grundfos SCALA1 5-55 Pressure Booster Pump, 1.15 HP, 23.2 GPM Rated Flow, 115V, Max Head 181', App-Enabled - 99631754

SKU: 914058
$ 799.16 / ea
Save 29% · Retail: $1,132.00

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"! In Stock and Ready to Ship


Ships From Price Qty
Order From Manufacturer
Available to Ship in 3-4 weeks
$799.16/ea

About the Grundfos SCALA1 5-55 Pressure Booster Pump, 1.15 HP, 23.2 GPM Rated Flow, 115V, Max Head 181', App-Enabled - 99631754

The Grundfos SCALA1 5-55 (99631754) pressure booster pump is a multi-stage pump that helps increase low water flow in water systems for households, gardens, and light commercial applications. This self-priming pump brings together the components of a pressure booster into a compact composite enclosure to deliver sufficient water flow and pressure to consumers.

This SCALA1 5-55 pump can communicate with the Grundfos GO Remote app through built-in Bluetooth technology. This technology enables high customization options, making it suitable for any application, such as commercial water pressure boosting, domestic groundwater intake, and domestic water pressure boosting. Composite materials for the housing and impeller make this 1 HP pump durable. Because of pressure spikes, it is recommended that homeowners with well systems or non-regulated pressure lines include an expansion tank during installation to keep pressure from reaching 145 psi. This will help to keep your Scala Booster pump/System in good working order for years to come.

Grundfos works hard to improve water pumps with energy efficiency to address global- water and climate challenges. They focused on finding innovative solutions to increasing urbanization and our modern way of living to improve people's quality of life. With the intelligent solution, they bring about a change in access to clean and healthy water!

Grundfos pumps were the first on the market with high demand for the water supply, like this Grundfos 115V SCALA1 5-55 pump. You can also check our other Grundfos pumps, Grundfos pump impellers, and the parts and accessories for your future reference!

Manufacturer: Grundfos
Product: Pumps
Type: Booster Pump
Installation Location: Outdoor
Other Info: Bluetooth-enabled Connectivity
Connection Type: NPT
Temperature Range: 0 - 55° F
Electrical Voltage: 115 Volt
Pressure Rating: 115 PSI
Operating Noise Level: 55 dB (A)
Connection Size: 1"
Mpn # 99631754
Shipping Dimensions 15.9" x 7.6" x 11.9"
Weight 30.87 lbs.
  • ALL-IN BOOSTER UNIT: Complete All-in-one Unit, Integrating Pump, Motor, Diaphragm Tank, Pressure and Flow Sensor, Dry-running Protection, Controller, and Non-return Valve
  • EASY INSTALLATION: You can Save time installing SCALA1 – simply connect the pipes, prime the pump, and then plug it in
  • USAGE: This is a multi-stage, self-priming pressure booster pump. And it is suitable for use with residential groundwater intake and commercial water pressure increase.
  • TECHNOLOGY: This Self-priming Pump Is Able to Communicate With Joint Pump Control Using the Grundfos Go Remote App With Integrated Bluetooth Technology
  • CONNECTION: This Pump Has an Inlet Connection of 1" NPT
  • HEAD SIZE: Maximum Head is 44m/144ft With A Minimum Head of 25m/82ft
  • IP RATING: X4D (Outdoor Use Ready)
  • ELECTRICAL VOLTAGE: It Operates in a 115 Volt
  • MAXIMUM INLET PRESSURE: 3 Bar/43 PSI
  • MAXIMUM SYSTEM PRESSURE: 8 Bar/115 PSI
  • NOISE LEVEL: <55 dB(A)
  • HORSE POWER: 1" HP
