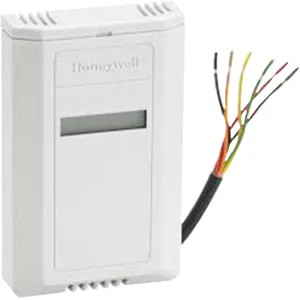

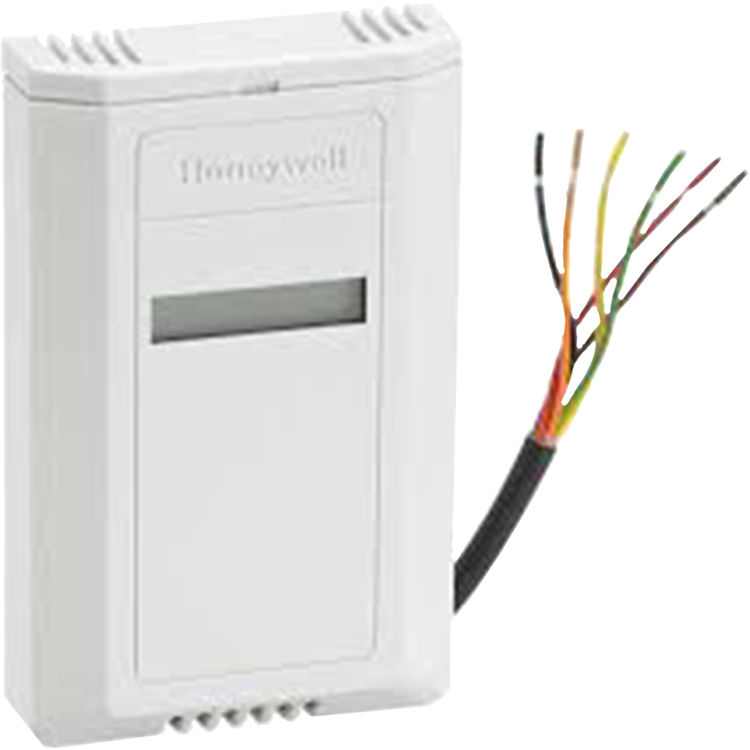

Honeywell C7232B1014 Honeywell C7232B1014/U Wall Mount CO2 /Temperature Sensor

Honeywell C7232B1014/U Wall Mount CO2 /Temperature Sensor

SKU: 372892
Manufacturer Image
shopping_cart_off We're sorry, this product is not available for purchase right now.

About the Honeywell C7232B1014/U Wall Mount CO2 /Temperature Sensor

Honeywell C7232B1014/U Wall Mount CO2 /Temperature Sensor. These stand-alone Carbon Dioxide (CO2) Sensors and Controllers are used for determining ventilation necessity with HVAC controllers and to manage the amount of fresh outdoor air supplied to maintain acceptable levels of CO2.

Product: Parts and Accessories
Manufacturer: Honeywell
Use: Drain Waste and Vent
Faucet Part Feature: Electrical and Sensors
Length: 8
Mount Type: Wall Mount
Mpn # C7232B1014
Weight 0.40 lbs.
  • Manage the amount of fresh outdoor air supplied to maintain acceptable levels of CO2 in the space.
  • C7232 provides voltage or current output based on CO2 levels.
  • Carbon Dioxide Sensor
  • 24 Vac
  • 32 F to 122 F
  • 0 C to 50 C
  • One: Normally Open SPST
  • Response--1 minute
  • 5% full scale
  • None
  • 0 to 2000 ppm, adjustable
  • Used for CO2 based ventilation control.
  • 0/2 - 10 Vdc or 0/4 - 20 mA selectable, w/ one relay output
  • 5 5/8 in. high x 3 5/16 in. wide x 3 7/16 in. deep x plus 8 in. long sensing tube
  • 142 mm high x 84 mm wide x 87 mm deep x plus 203 mm sensing tube
  • Honeywell Logo
  • Duct mount
  • 50 Hz; 60 Hz
  • Six leadwires, 20-gauge, 6 in. long
  • Non-dispersive Infrared (NDIR)
  • 1 A @ 50 Vac/24 Vdc
  • Models available with LCD that provides sensor readings and status information.
  • Non-Dispersion-Infrared (NDIR) technology used to measure carbon dioxide gas
  • Gold-plated sensor provides long-term calibration stability.
  • Device provides voltage or current output based on CO2 levels.
  • Models available with SPST relay output.
  • Automatic Background Calibration (ABC) algorithm based on long-term evaluation reduces required typical zero-drift check maintenance
  • SPST relay output.
