Honeywell M7284Q1082 Honeywell M7284Q1082/U 153 lb-in, NSR Actuator

Honeywell M7284Q1082/U 153 lb-in, NSR Actuator

SKU: 374326

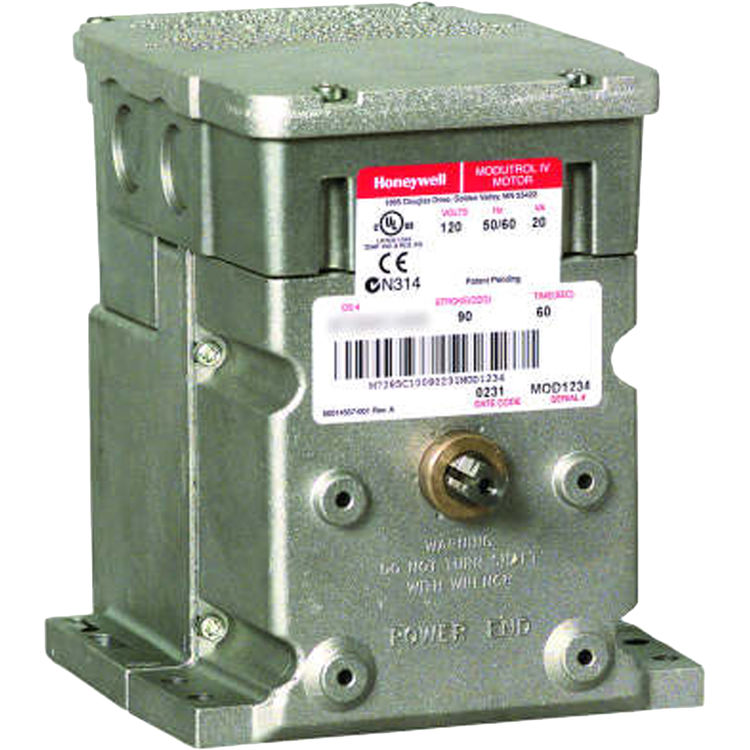

Manufacturer Image
shopping_cart_off We're sorry, this product is not available for purchase right now.

About the Honeywell M7284Q1082/U 153 lb-in, NSR Actuator

Honeywell M7284Q1082/U 153 lb-in, NSR Actuator. Honeywell Series 72 Modutrol IV Motors are spring return and non-spring return motors (per motor type) used to control dampers and Valves. The motors accept a current or Voltage signal from an electronic controller to Position a damper or Valve at any point between open and closed.

Product: Actuator
Manufacturer: Honeywell
Style: Parts
Mpn # M7284Q1082
Shipping Dimensions 10.0" x 6.0" x 8.0"
Weight 13.00 lbs.
  • Electric
  • Screw terminals
  • 24V; 120V; 230V
  • Driving-- 15 VA
  • EN55011 (Emission) EN50082-2 (Immunity) 73/23/EEC (LVD)
  • -40 F to +150 F
  • -40 C to +60 C
  • 2
  • AFL - 120 Vac-- 7.2A; ALR- 120 Vac-- 43.2A; AFL - 240 Vac-- 3.6A; ALR- 240 Vac-- 21.6A
  • Fixed; 90 degrees, Symmetrical
  • 0.375 in. Square
  • 6 7/16 in. high x 5 1/2 in. wide x 7 5/16 in. deep
  • Modulating, 4-20 mA
  • Non-Spring Return
  • 150 lb-in.
  • 17 Nm
  • Clockwise (as viewed from power end) (normally closed)
  • 90 degrees
  • 30 sec
  • No
  • 10 mm Square
  • Dual-ended shaft
  • 164 mm high x 140 mm wide x 185 mm deep
  • Either End-- 200 lbs.; Combined on both Shafts-- 300 lbs.
  • 50004263-006
  • Transformer
  • 7.5 lb
  • Totally enclosed Micro Switch snap-acting switches operate on temperature rise to setpoint
  • Foot-mounted
  • 50 Hz; 60 Hz
  • Listed: File No. E4436, Guide No. XAPX for USA and Canada
