Hydro-Rain HRJ-100-FF-00 Hydro-Rain HRJ-100-FF-00 1

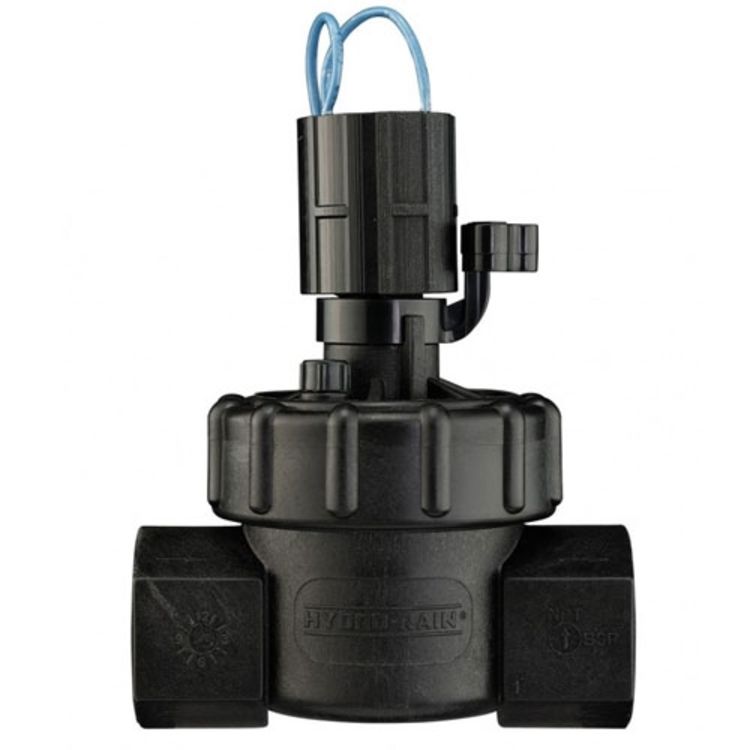

Hydro-Rain HRJ-100-FF-00 1" Jar Top Sprinkler Valve

SKU: 180117
Manufacturer Image
-44.4%
$ 14 .81 / ea
$ 26 .66 / ea
visa mastercard american-express discover paypal crypto
Qty
inventory_2 Unlimited Availability
add_shopping_cart Add To Cart
local_shipping Available to Ship in 3-4 weeks
factory Orders from the Manufacturer
Free Sprinkler Design

About the Hydro-Rain HRJ-100-FF-00 1" Jar Top Sprinkler Valve

The Hydro-Rain HRJ-100-FF-00 is a 1 " Jar-Top Valve 1 "Fipt x 1 "Fipt. The HRJ Series Valves are molded with heavy duty commercial grade glass filled nylon throughout its entire body. The union design of the HRJ100FF00 means that no tools are required to open and service this valve. For use with Blu-Lock irrigation fittings

Mpn # HRJ-100-FF-00
Weight 1.00 lbs.
  • Fast Valve Service-Pairs standard diaphragm with easy-to-service “jar top� lid.
  • High Performance Solenoid-Features 18" Hydro-Rain lead wires and captured plunger.
  • Three-Year Warranty-Hydro-Rain® ensures full quality performance for the warranty period or we’ll replace it.
  • Flow: .25~30 GPM (1~115 LPM)
  • Pressure Range: 10~150 PSI (0,7~10 Bar)
  • Dimensions:· Height: 5" (12,7 cm)· Length: 4" (10,1cm)· Width: 3" (7,6 cm)
  • 24 vac 50/60 HZ (Cycles/Sec) Solenoid
  • Inrush Current: .30 A (7.2 VA) at 60 HZ
  • Holding Current: .19 A (4.6VA) at 60 HZ
  • Coil Resistance: 42~55 OHMS
  • Factory-Installed 1" Hydro-Rain Adapter-Makes for lightening fast, glueless installation.
  • Ultra Low Flow-Allows operation at lowest possible flows to boost water savings.
  • Commercial-Grade Construction-Features glassfilled polypropylene and heavy-duty PVC body.
  • Weep Free Valve Seat-Delivers positive closure.
  • Low-Flow Capable-Operates efficiently from .25 to 30 GPM.
  • Stainless Steel Metering-Ensures optimal diaphragm performance.
  • Manual Internal Bleed-Enables water-efficient manual operation.
  • Manual External Bleed-Allows for fast seasonal startup and shutdown.
  • Fast Valve Service-Pairs standard diaphragm with easy-to-service “jar top†lid.
  • High Performance Solenoid-Features 18
  • Dimensions:· Height: 5
  • Factory-Installed 1
