About the Little Giant Single Phase Duplex Package, 1/2 hp, 100 gpm, 115 Volts, 3-inch Discharge, 20 ft Cord Length - 14S-DPLX 14940709

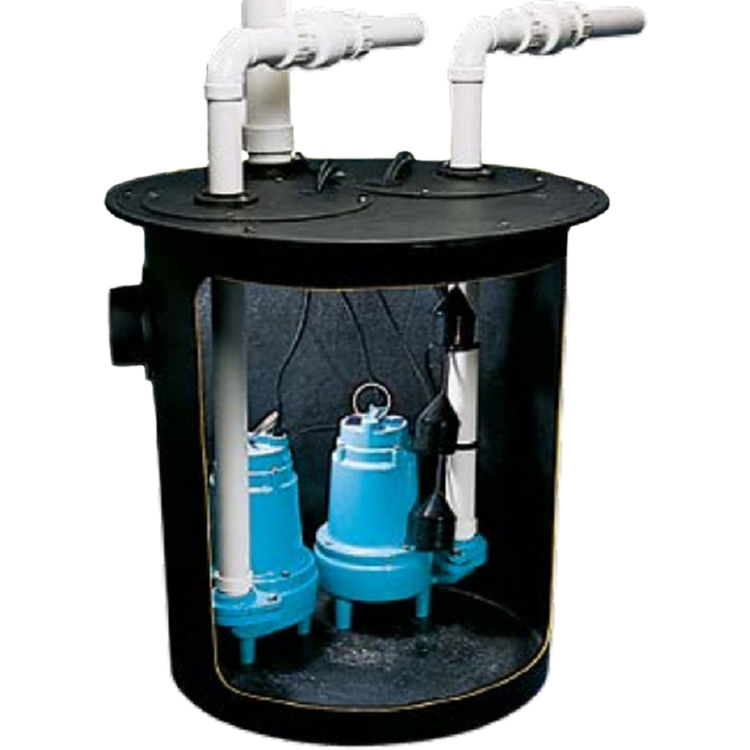

The Little Giant 14940709 14S-DPLX is a pre-assembled duplex system. It consists of two submersible pumps and a basin. Its pumps work in an alternate pumping process allowing no interruption in the stroke. This system collects sewage, effluent, drainage or seepage water in its huge basin and pumps it to a pipe on a higher level. It has a discharge size of 3”. It has a 1/2 hp permanent split capacitor (PSC) motor. This Little Giant 14940709 14S-DPLX Duplex System can pump 100 GPM at 10’ head pressure and up to 35 GPM at 20’ head pressure. It comes with a 20’ cord. The needed voltage to run this pump is 115V single phase. It has a 30” x 36” poly structural foam basin with a steel cover. This package includes a (513258) duplex alarm system/pump control enclosed in a NEMA 4X waterproof fiberglass casing consisting of a control panel and three sensor floats for high-water detection, pump on and pump off. It has an epoxy coated cast iron pump housing. For more details, you can refer to the specification sheet. The Little Giant 14940709 14S-DPLX Duplex System is covered by a limited warranty for a period of 24 months. This product bears the CSA mark for meeting the standards. Little Giant has proven their excellence for over 70 years of producing reliable pump solutions, packaged system options, and accessories.
