Sloan 3453050 Sloan Royal 194 ES-SM-3.5-2-10-3/4-LDIM Concealed Sensor Urinal Flushometer (3453050)

Product Options

Sloan Royal 194 ES-SM-3.5-2-10-3/4-LDIM Concealed Sensor Urinal Flushometer (3453050)

SKU: 93654
$ 867.30 / ea
 Free Shipping!
Save 35% · Retail: $1,334.30

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"!   Available to Ship in 2-3 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks
$867.30/ea

About the Sloan Royal 194 ES-SM-3.5-2-10-3/4-LDIM Concealed Sensor Urinal Flushometer (3453050)

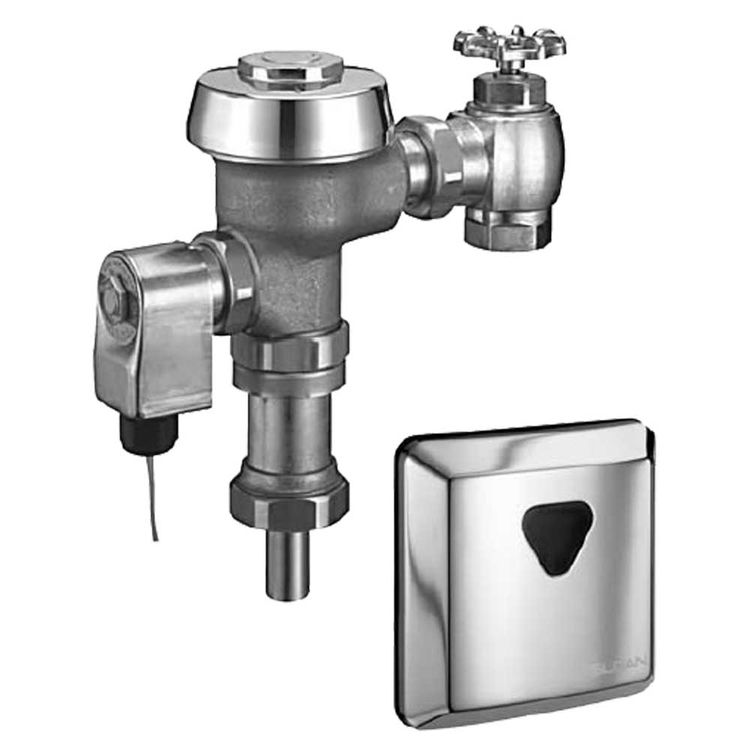

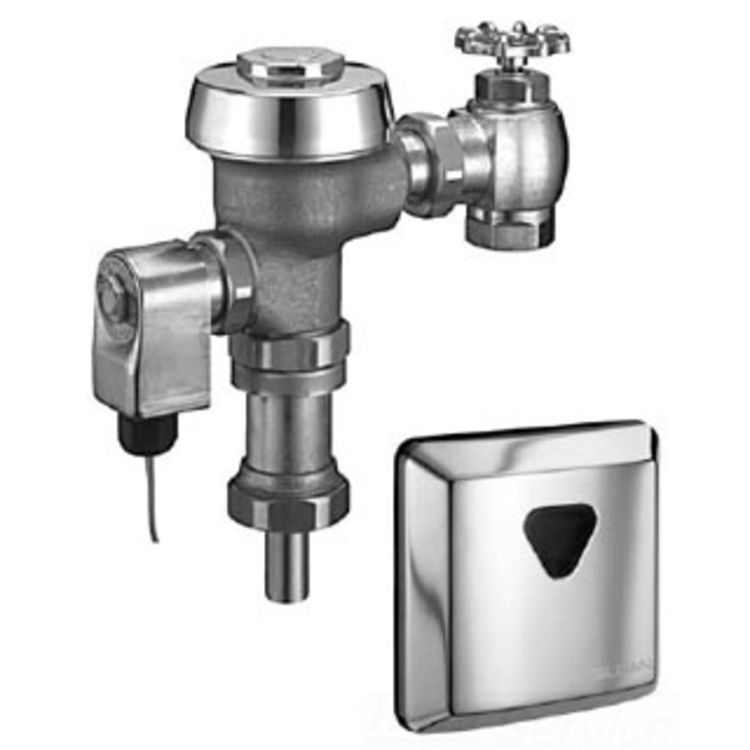

Sloan Royal 194 is a Concealed, Surface Mount Sensor Activated Royal Model Urinal Flushometer I. P. S. Outlet for urinals and flushing rim floor drains. No Flush Connection. Adjustable from 2 3/4 In. to 10 3/4 In. center of valve to finished wall. 1. 5 Gpf and ADA Compliant. Sloan Royal 194 is a Quiet, Concealed, Diaphragm Type, Rough Brass Urinal Flushometer for either left or right hand supply.

Product: Medical
  Back Spud Flush Valve
Manufacturer: Sloan
Style: Billiard Table
  Sensor Operated
Product Collection: Royal
Mpn # 3453050
Weight 9.56 lbs.
  • 2-3/4" -10-3/4" L Dimension
  • 1.5 gpf (5.7 Lpf)
  • Quiet, Concealed, Diaphragm Type, Rough Brass Urinal Flushometer for either left or right hand supply
  • PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
  • OPTIMA EL-497 Water Resistant (NEMA 4) Infrared Sensor with Indicator Light and 36-Inch Cord with Modular Plug
  • Non-Hold-Open Integral Solenoid Operator w/15-Foot Cord and Modular Plug
  • Chrome Plated, Surface Mount Sensor Enclosure with Wall Gasket
  • 3/4" I.P.S. Wheel Handle Bak-Chek Angle Stop
  • Adjustable Tailpiece
  • High Back Pressure Vacuum Breaker
  • 3/4" Female I.P.S. Union Outlet (no flush connection)
  • Sweat Solder Adapter
  • High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • Non-Hold-Open Integral Solenoid Operator, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
  • Flush Accuracy Controlled by CID Technology
  • Diaphragm, Stop Seat and Vacuum Breaker molded from PERMEX Rubber Compound for Chloramine Resistance
