Product Details
Product:
Educational
Top Spud Flush Valve
Manufacturer:
Sloan
Style:
Watering Wand
Pedal Flush
Product Collection:
Royal
Mpn #
3014400
Weight
9.46 lbs.
About the Sloan 3014400

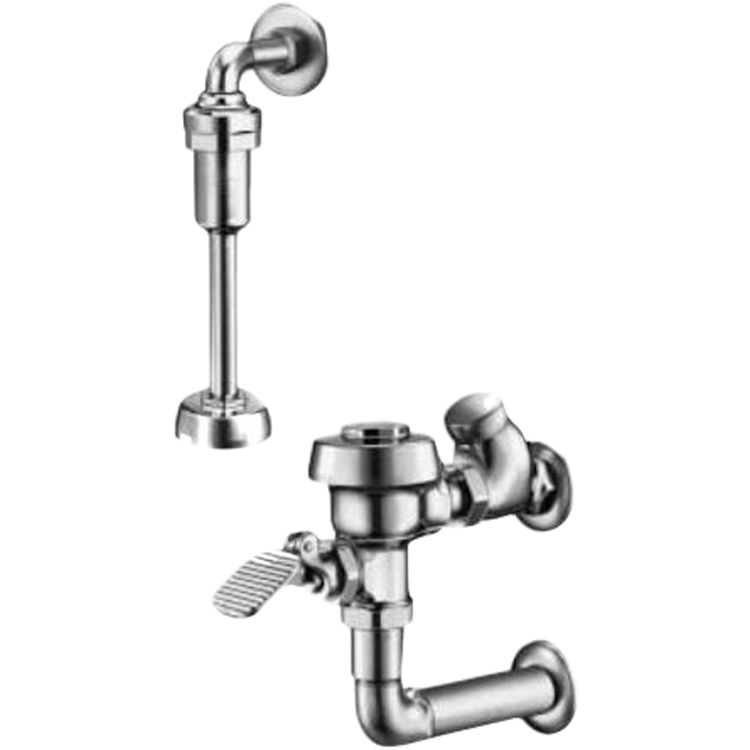

About the Sloan Royal 320-3.5 Exposed Manual Specialty Urinal Foot Pedal Flushometer (3014400)
Sloam Royal 320 is an Exposed Urinal Foot Pedal Flushometer, for 3/4" top spud urinals. 1.5 gpf. Sloan Royal 320 is a Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer.
PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
Metal Non-Hold-Open Foot Pedal with Triple Seal Handle Packing
1" I.P.S. Screwdriver Bak-Chek? Straight Stop
Free Spinning Vandal Resistant Stop Cap
Ground Joint Tailpiece
1" Female I.P.S. Union Outlet
1" I.P.S. Street Elbow, Casing and Wall Flange to cover 1? pipe
3/4? Elbow Flush Connection, Spud Coupling, and Flanges from finished wall to 3/4 Exposed Top Spud
High Back Pressure Vacuum Breaker with One-piece Bottom Hex Coupling Nut
Sweat Solder Adapter and Cast Set Screw Wall Flange
High Copper, Low Zinc Brass Castings for Dezincification Resistance
Non-Hold-Open Foot Pedal, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
Flush Accuracy Controlled by CID Technology
Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker to be molded from PERMEX Rubber Compound for Chloramine Resistance
Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037, ANSI/ASME 112.19.6, and Military Specification V-29193.
